Feature
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 25Gbps in each direction
- RS485 signals: DATA+ (B), DATA- (A), GND
- RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
- Working mode: asynchronous working、point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
- Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
- Transmission media: twisted-pair cable or shielded cable
- Direction control: Adopt the technology which automatically controls the data-flow direction、automatically distinguish and control the data-transmission direction;
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and
- even/odd/mark/space/none

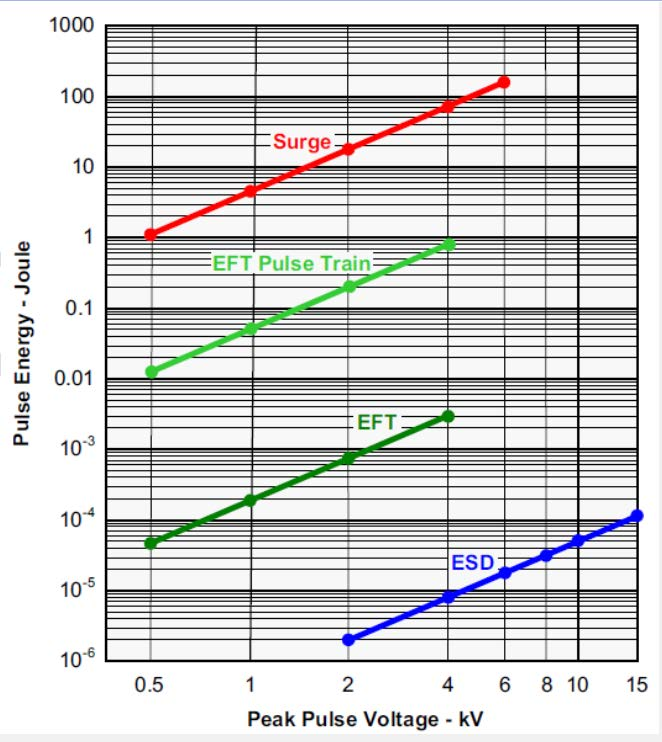

- Interface protection:TVS on each signal of RS42/485 port - for the protection of
- 400W Voltage Surge and +/-20kV ESD
-
Flow control none,hardware and xon/xoff
-
Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
-
Extended operating temperature range; -40 to 85?C
Specification
| Bus Type | PCIe |
| Number of Ports | 8 Port |
| operating temperature | -40 to 85?C |
| Dimensions | 89 x 65.8mm |
| OS Compatibility |
• Windows® Server 2003, 2008, 2012 • Windows® XP, Vista, 7, 8,8.1,10 • Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer • A available PCI Express slot |
Accessorie
-
1 x RS422/485 8-Port PCIe Card
-
1 x Driver CD
-
1 x User Manual
-
1 x Low Profile bracket
-
1 x VHDCI68 to 8x DB9 Cable
Note: Contents may vary depending on country/market
